In 1965, Sundyne designed and built the first integrally geared vertical compressor for Union Carbide. The space saving design was based on the very successful Sundyne LMV integrally geared pump technology. Since then, more than 50 years of experience and innovation has come from thousands of deployments in oil and gas upstream, midstream and downstream plants in some of the world’s most demanding environments.
Today, the Sundyne compressor line features single- and multi-stage centrifugal designs for API 617 and fit-for-purpose applica¬tions including fuel gas boost in power generation. Each model is custom built to provide pulsa¬tion- and vibration-free operation, and to deliver oil-free process gas with zero emissions.
NACE compliant Sundyne Compressors handle the most difficult gas processing operations. Each unit is engineered in accordance with industry standards, and is designed to run continuously for 5 to 7 years without the need for costly maintenance or over-hauls.
Sundyne gas compressors provide the performance envelope, the feature set, the reliability ratings and the uncompromising efficiency needed to address the Best Efficiency Point (BEP) for any application.
https://www.sundyne.com/products/process-gas-compressors/
A single-stage integrally geared centrifugal compressor delivering multi-stage performance. Flows to 2,000 ACFM, Max working pressure to 1440 psia (100 bar).
A single-stage integrally geared centrifugal compressor with flows to 2,100 ACFM (3,570 AM³/hr); Max working pressure 1,000 psia (70 bar).
A single-stage integrally geared centrifugal compressor with flows to 3,550 ACFM (6,030 AM³/hr); Max working pressure 1,000 psia (70 bar).
A single-stage integrally geared centrifugal compressor with flows to 2,100 ACFM (3,570 AM³/hr); Max. working pressure 1,000 psia (70 bar).
The LMC/BMC-343 is a single-stage integrally geared centrifugal compressor with flows to 2,100 ACFM (3,570 AM³/hr); Max working pressure 1,000 psia (70 bar).
The LMC/BMC-337 is a single-stage integrally geared centrifugal compressor with flows to 3,550 ACFM (6,030 AM³/hr); Max working pressure 1,000 psia (70 bar).
The LMC/BMC-347 is a single-stage Integrally geared centrifugal compressor with Flows to 3,550 ACFM (6,030 AM³/hr); Max working pressure 1,000 psia (70 bar).
An API 617 compliant integrally geared single-stage centrifugal compressor with flows to 3,550 ACFM (6,030 AM³/hr); Max working pressure 1,600 psig (110 barg).
A vertical single-stage integrally geared centrifugal compressor with flows to 850 ACFM (1,450 AM³/hr); Max. working pressure 1,440 psia (100 bar).
A single-stage integrally geared centrifugal compressor. Flows to 850 ACFM (1,450 AM³/hr), Max working pressure 1,440 psia (100 bar).

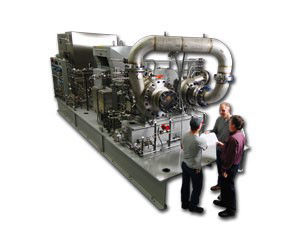

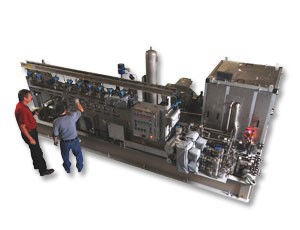

The Pinnacle is an API 617, multi-stage centrifugal integrally geared compressor. Flows to 10,000 ACFM (17,000 AM³/hr), Max working pressure 4,000 psia (350 bar).
The LF-2X80 centrifugal compressor is for flows up to 6000 ACFM (10,200 AM3/hr) with maximum working pressures to 1440 psi (100 Bara).
