Sundyne API 610, OH6 Integrally Gear Driven Pumps are engineered for critical high-head, low-flow, heavy-duty services required in the hydrocarbon, chemical, petrochemical, power generation, gas production, and specialty processing industries.
Sundyne’s unique integrally gear driven pump design offers the ability to optimize efficiency, curve shape, NPSH, runout horsepower and radial loading to provide economical, reliable operation through various combinations of impeller, diffuser, and inducer geometry.

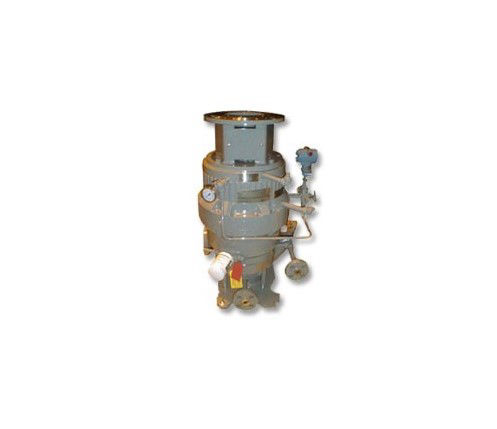

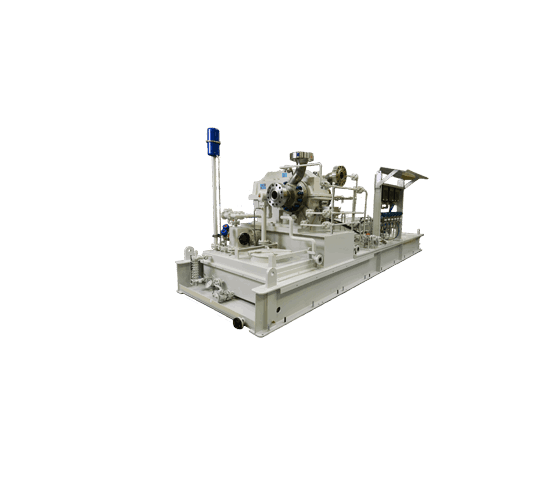

Available in LMV (Line Mounted Vertical) or BMP (Base Mounted Pump) configurations, each member in the line offers multi-stage performance from a small single-stage unit.
https://www.sundyne.com/products/integrally-geared-pumps/

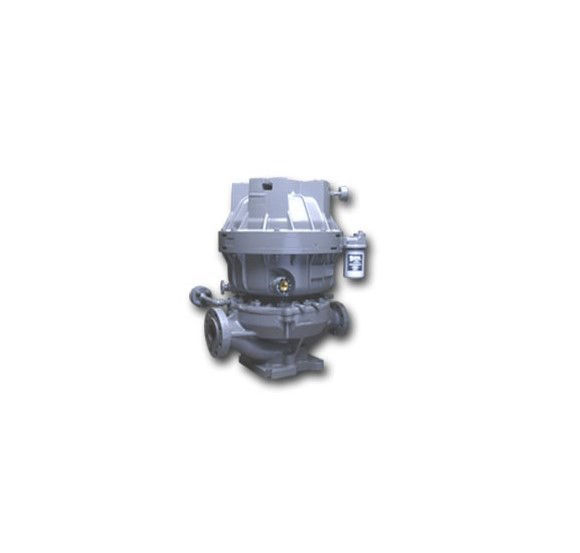

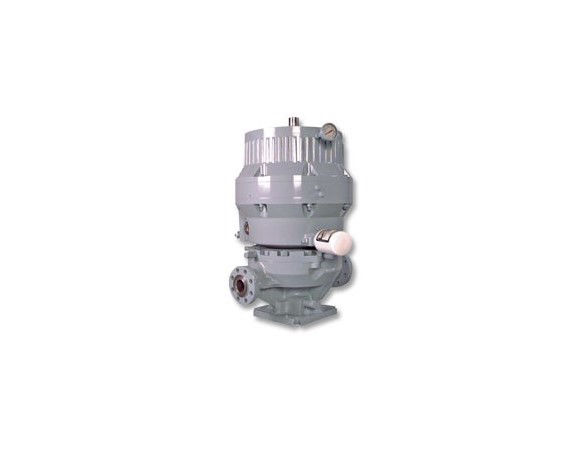

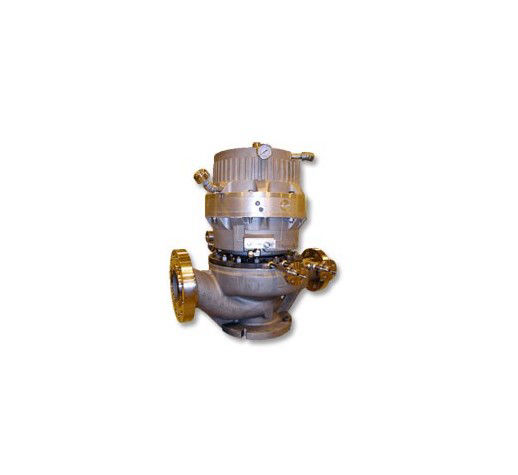

Integrally geared centrifugal ISO-13709, API 610, 10th Edition, OH6 pump. Flows to 400 gpm (91 m³/hr), Heads to 6,300 ft. (1,921 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition OH6 pump. Flows to 1,040 gpm (236 m³/hr), Heads to 1,790 ft (546 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition, OH6 pump. Flows to 230 gpm (52 m³/hr), Heads to 3,000 ft (915 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition, OH6 pump. Flows to 400 gpm (91 m³/hr), Heads to 4,800 ft (1,400 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition, OH6 pump. Flows to 1,000 gpm (227 m³/hr), Heads to 4,200 ft (1280 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition OH6 pump with Flows to 1,100 gpm (250 m³/hr) and Heads to 2,800 ft (854 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition, OH6 pump. Flows to 400 gpm (91 m³/hr), Heads to 6,300 ft (1,921 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition, OH6 pump. Flows to 1,000 gpm (227 m³/hr), Heads to 3,000 ft (915 m)
Integrally geared centrifugal ISO 13709, API 610, 10th Edition, OH6 pump. Flows to 400 gpm (91 m³/hr), Heads to 6,300 ft (1,921 m)

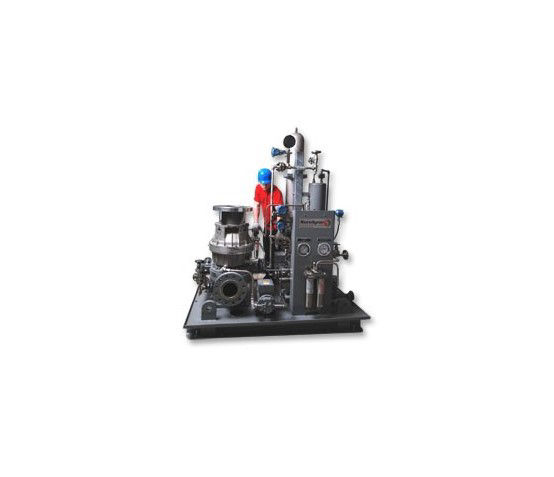

The HMP-3000 is a two-stage integrally geared centrifugal pump. Flows to 440 gpm (100 m³/hr), Heads to 10,000 ft (3,050 m)
The HMP-5000 is a four-stage centrifugal pump. Flows to 660 gpm (150 m³/hr), Heads to 14,500 ft (4,420m)
The HMP-7000 is a one to four stage centrifugal pump. Flows to 1,800 gpm (410 m³/hr), Heads to 14,500 ft (4,420 m)

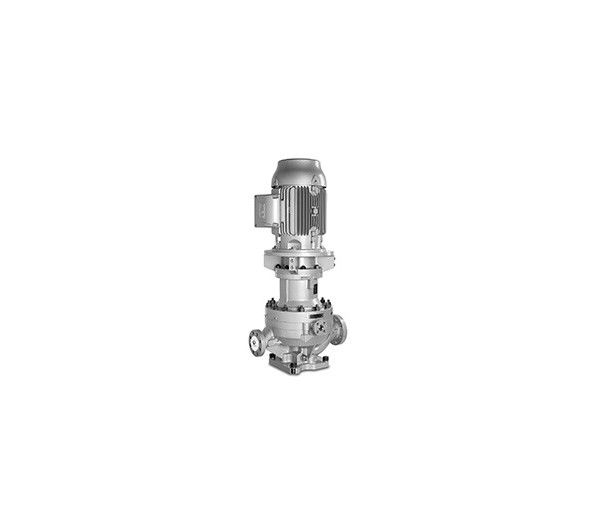

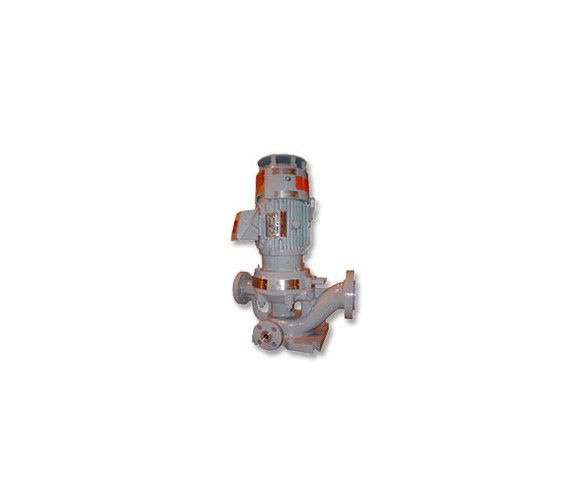

Direct drive centrifugal ISO 13709, API 610, 10 Edition, OH3 or OH5 pump. Flows to 380 gpm (86 m³/hr), Heads to 720 ft (220 m)
LMV 801CS Cartridge Seal Direct Drive Pump. Flows to 380 gpm (86 m³/hr), Heads to 720 ft (220 m)
Built to comply with exacting API 685 (OH4) standards, the LMV-801S is a rigidly coupled vertical inline single stage overhung sealless magnetic drive pump. Flows to 380 gpm (86 m³/hr), Heads to 720 ft (220 m)

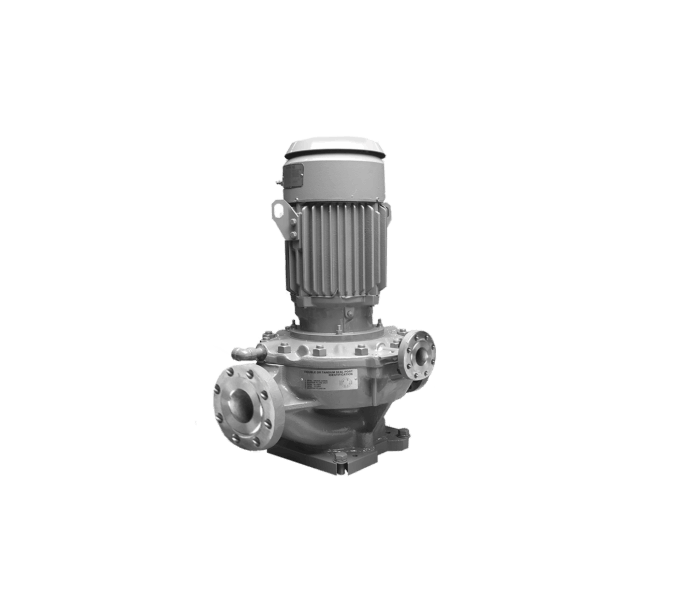

Direct drive centrifugal ISO 13709, API 610, 10th Edition, OH3 or OH5 pump. Flows to 150 gpm (27 m³/hr), Heads to 210 ft (64m)
Direct drive centrifugal ISO 13709, API 610, 10th Edition, OH3 or OH5 pump. Flows to 380 gpm (69 m³/hr), Heads to 760ft (162 m)
Built to comply with OH3 and OH5 standards and fully compliant with API 610 A-8 guidelines for pumps in its class, the LMV-803Lr boasts a robust new 6x4 casing design that is purpose-built to withstand the rigors of high pressure applications. Flows to 800 gpm (182 m³/hr), Heads to 1,080 ft (268m) with VFD
