Marelli Heavy Duty API 610 Process Pumps

Highly reliable with a long life, Marelli multi-stage pumps are capable of reaching massive flow rates and pressures. They are ruggedly designed to run continuously for years with rugged rotor designs and low vibration balanced rotor designs. They are efficiently designed to save energy and meet exacting API 610 and ISO 13709 standard requirements for overhung, between-bearings and vertically-suspended centrifugal pumps.
Process engineers utilize Marelli heavy duty pumps for refining, petrochemical, offshore, floating production storage and offloading (FPSO) operations, floating liquified natural gas (FLNG) facilities, chemical and general industries requiring high-pressure and flow. These pumps were originally manufactured under the Marelli Bombas brand in Spain. The install base of Marelli pumps is over 10,000 units, many running for decades.
Large engineered water pumps for refining cooling towers, raw water intake, water transfer, irrigation and large osmosis plants are also designed and manufactured in the Illescas, Spain facility.
With flows as high as 66,000 gpm (15,000 m³/hr) Marelli has a pump that will fit your application.
https://www.sundyne.com/products/marelli-pumps/

Products

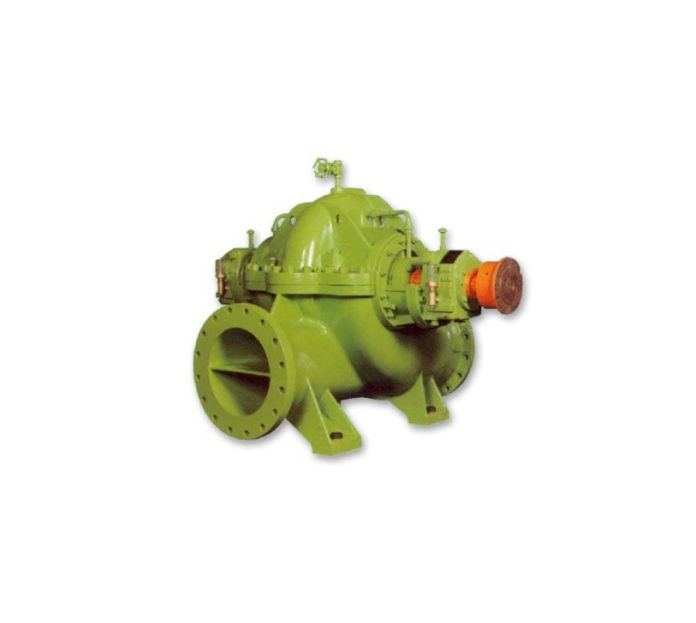

API BB1 centrifugal pump, axially split case, 1 or 2 stage pump with bearings on both ends of the rotating assembly (PDH-LH)

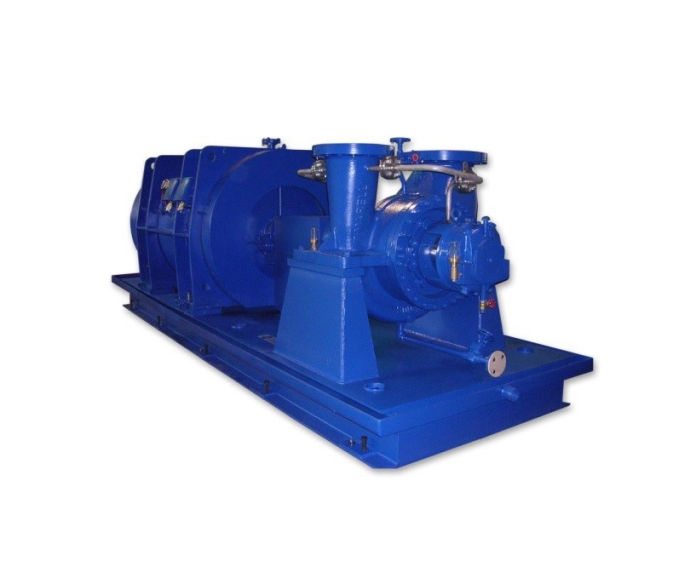

API BB2 centrifugal pump, radially split case, 1 or 2 stage, with bearings on both ends of the rotating assembly (KSMK)

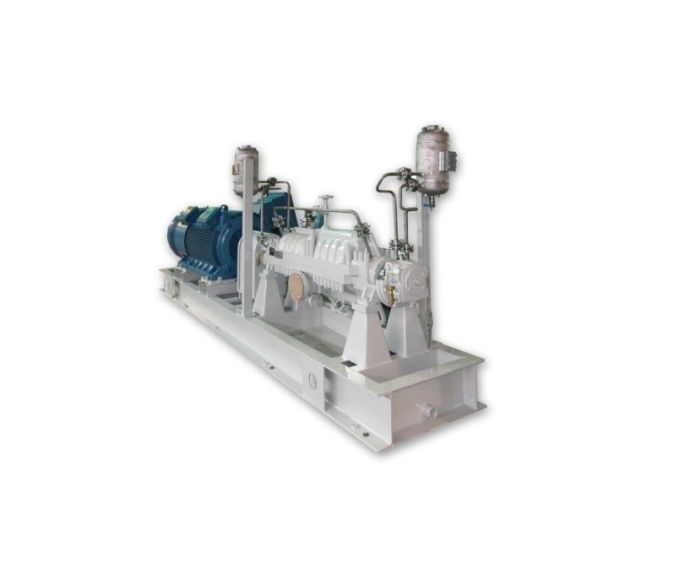

API BB3 multistage centrifugal pump, axially split case with bearings on both ends of the rotating assembly (DVMX)

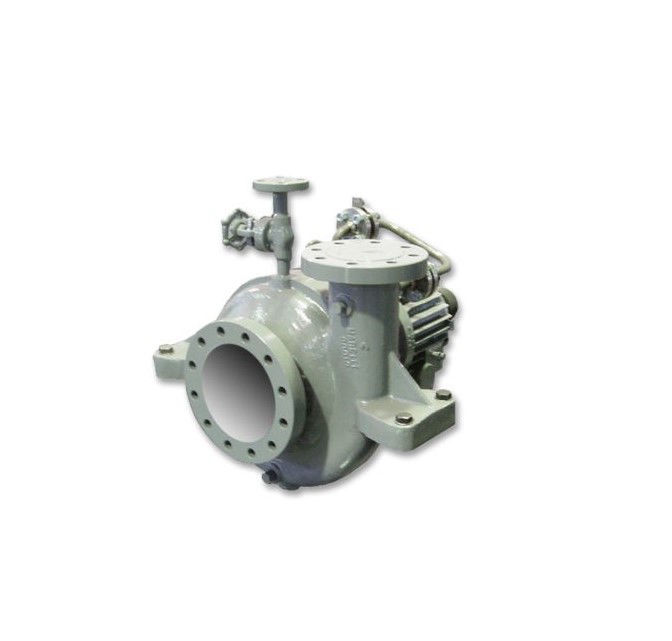

API OH2 horizontal single or double volute centrifugal pump, centerline mounted, overhung with a single bearing housing (SMK)

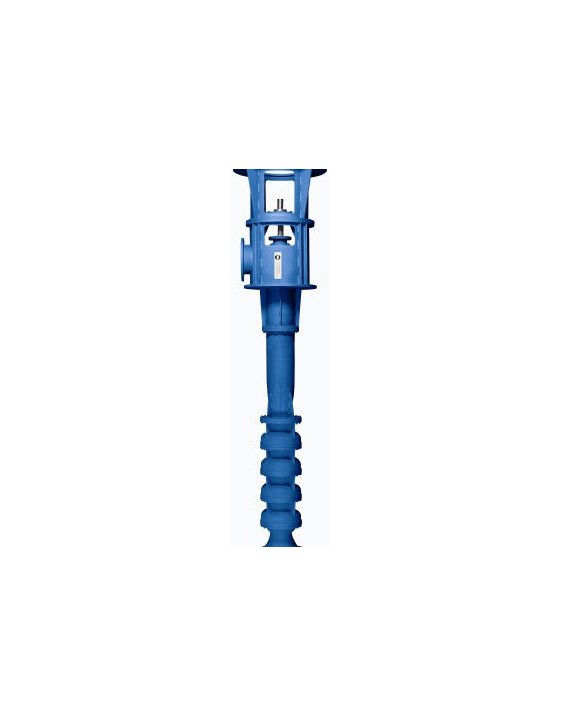

API VS1 vertically suspended multistage centrifugal pump, wet pit, diffuser with single casing (FG)

API VS2 vertically suspended double volute centrifugal pump, wet pit, with single casing (FQ)





Marelli VS4 vertically suspended, volute centrifugal pump with discharge column separate from shaft column (VSMK)

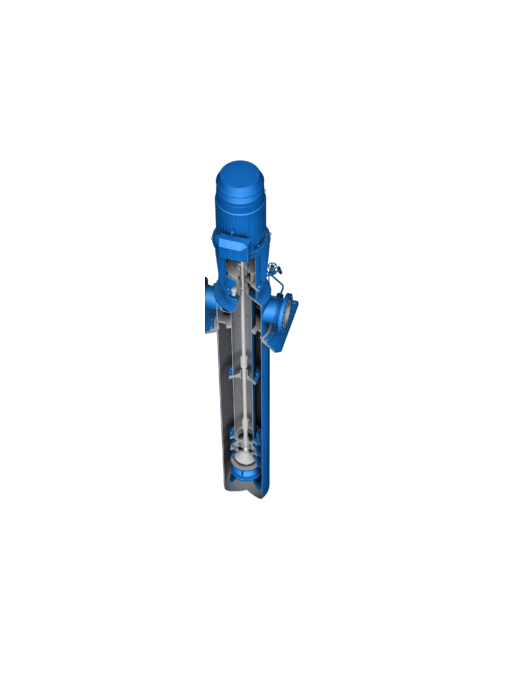

API VS6 vertically suspended, centrifugal pump with diffuser, double casing and discharge routed through the upright column (FGB/TKVB)
